Dynamic charts with Incanter

I had the opportunity to attend last week’s PragmaticStudio Clojure workshop taught by Rich Hickey and Stuart Halloway (I highly recommend it, and there are still seats open for the May class). During the three days I talked with Rich about features he’d like to see in Incanter, and the first thing he asked about was adding dynamic charts, like are available in Mathematica using the Manipulate function. So I ended up spending much of my lab time working on this feature, the first draft of which is now available.

Incanter has three new macros, sliders, dynamic-xy-plot, and dynamic-scatter-plot. The sliders macro can bind multiple named sequences to an equal number of JSlider widgets. When a slider is manipulated a user defined expression is evaluated. For instance, the following code will display two slider widgets bound to two sequences, x and y.

(sliders [x (range -3 3 0.01)
          y (range 0.01 10 0.1)]
  (foo x y))


Each time one of the sliders is manipulated the expression (foo x y) will be evaluated with the new value of either x or y. Presumably, foo has side effects, like changing the value of a ref or manipulating a GUI widget, since it is running in the separate thread used by the slider widget.

I then combined this macro with incanter.charts/set-data function to create dynamic versions of xy-plot and scatter-plot, named appropriately dynamic-xy-plot and dynamic-scatter-plot respectively.

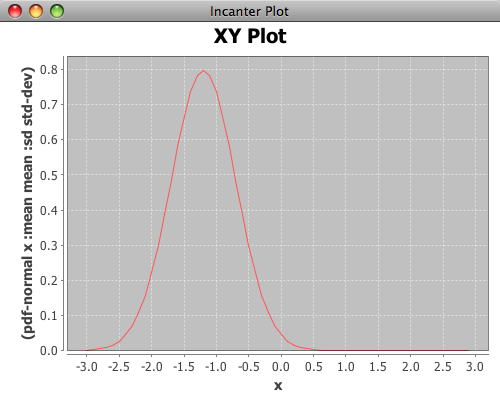

The following example creates an xy-plot of a sequence of values named x versus the normal PDF of x, and displays two sliders bound to the mean and standard deviation of the PDF.

(let [x (range -3 3 0.1)]
  (view (dynamic-xy-plot [mean (range -3 3 0.1)
                          std-dev (range 0.1 10 0.1)]
          [x (pdf-normal x :mean mean :sd std-dev)])))

The expression provided to dynamic-xy-plot must produce a sequence containing either two sequences with N values, or N sequences with two values each. In other words, a N-by-2 matrix or a 2-by-N matrix, where N is the number of points plotted. The expression above,

[x (pdf-normal x :mean mean :sd std-dev)]

produces a vector containing a sequence called x and the sequence produced by calling pdf-normal on x (equivalent to a N-by-2 matrix).

Manipulating the sliders will change the shape and position of the curve.

The dynamic-scatter-plot macro works the same way as dynamic-xy-plot. All three macros are available in the version of Incanter on Github and in repo.incanter.org.

5 responses to “Dynamic charts with Incanter

  1. just Wow…

  2. I got what I think is the latest into a new project by making a project.clj:

    (defproject incanterplayground “1.2.0-SNAPSHOT”
    :description “experiment with incanter”
    :repositories {“incanter” “http://repo.incanter.org”}
    :dependencies [[org.clojure/clojure “1.1.0”]
    [org.clojure/clojure-contrib “1.1.0”]
    [org.incanter/incanter-full “1.2.0-SNAPSHOT”]])

    and did lein deps
    then lein repl
    then:

    (use ‘(incanter core charts))
    java.lang.ExceptionInInitializerError (charts.clj:1556)

    • The ‘lein repl’ error is caused by a mismatch in the version of Clojure used by Incanter 1.2 (Clojure 1.2) and Leiningen (Clojure 1.1). Leiningen doesn’t use Clojure 1.2 even if that’s what you specified in your project.clj file.

      Although lein will build your project correctly, and lein swank works correctly. It just seems to be the repl task where the problem appears.

      I don’t have a good solution other than using a repl script, like the one Stuart Halloway uses in his labrepl tutorial project: http://github.com/relevance/labrepl/blob/master/script/repl

      Actually, the labrepl project includes Incanter.

      You could also use Maven’s ‘mvn clojure:repl’ task, or download/git pull the full Incanter project, and use the bin/clj script to start a repl.

      David

    • I just added a warning about this error, and provided links to some repl scripts to use with Leiningen-based projects to the instructions at http://repo.incanter.org/
